Spotti Leveling Line

Spotti Leveling Line

ype SL 2000X1.5-20 mm

Home / Our plants / Spotti Leveling Line

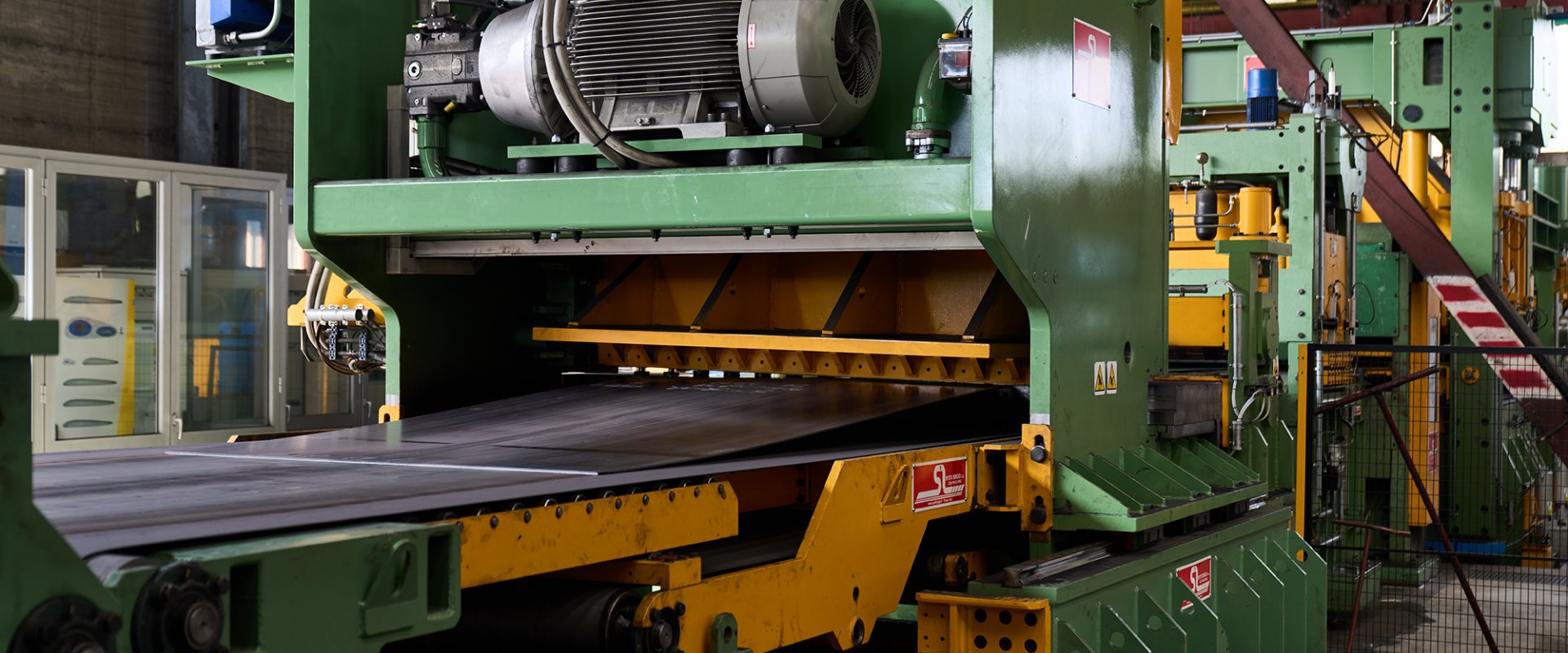

From June 2020 in Ferro Lamiere Metalli a new 4.0 leveler is operational. It processes coils with thicknesses from 1.5 to 20 mm with a width up to 2000mm.


The coils enters the detensioning unit and is then leveled by the leveling machines, cleaned by a system of brushes and suction. It is then cut in length by the shears. Finally, thanks to the stacker sheet metal packs are created and are packaged, according to current regulations.


The 4.0 machine is made up of 2 motors decoiler and an underground loading cradle. Spotti SL 2000 x 20 mm model bunk type roll opener, pinch-roll with n. 2 overlapping vertical coaxial rollers.


Spotti straightening machine for yielding material from 1.5 to 20mm, intermediate leveling machine for thicknesses from 6 to 20 mm and small leveling machine from 1.5 to 5 mm in thickness.


Measuring pinch-roll and fast shear flying carriage with extensible type conveyor belt. Push pinch-roll and chain stacker Spotti Sl 2000X20X12 mt. Fromm strapping machine model AM101002 and then two chains for pack exit.
